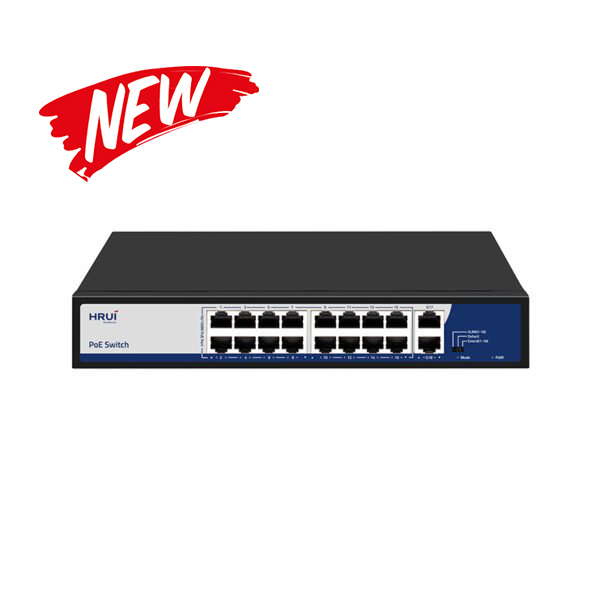

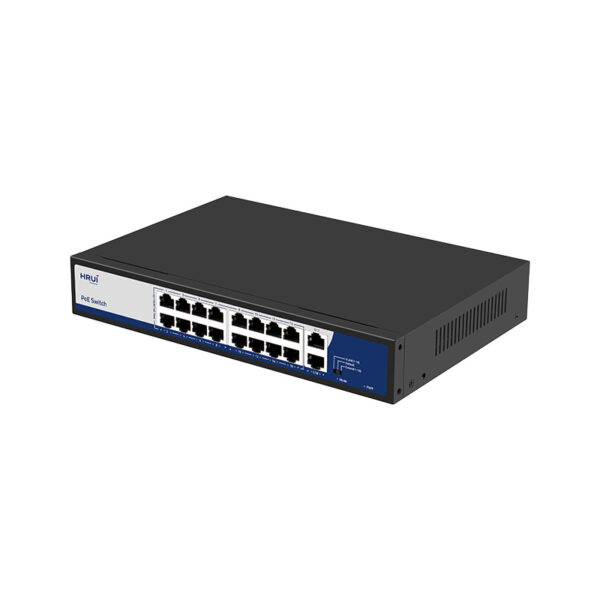

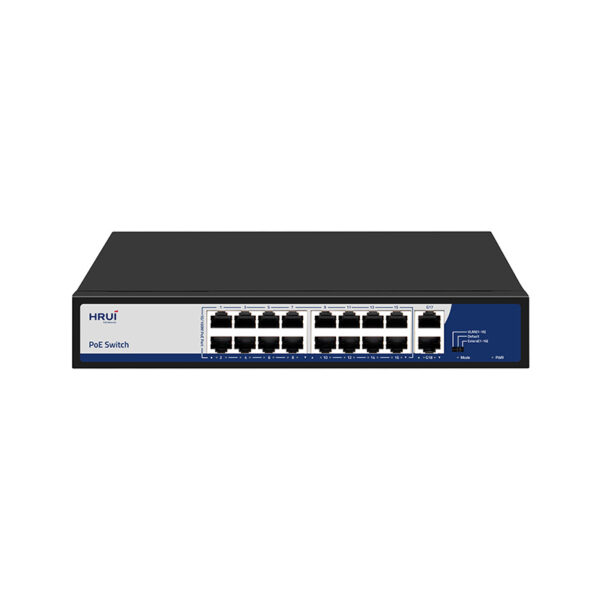

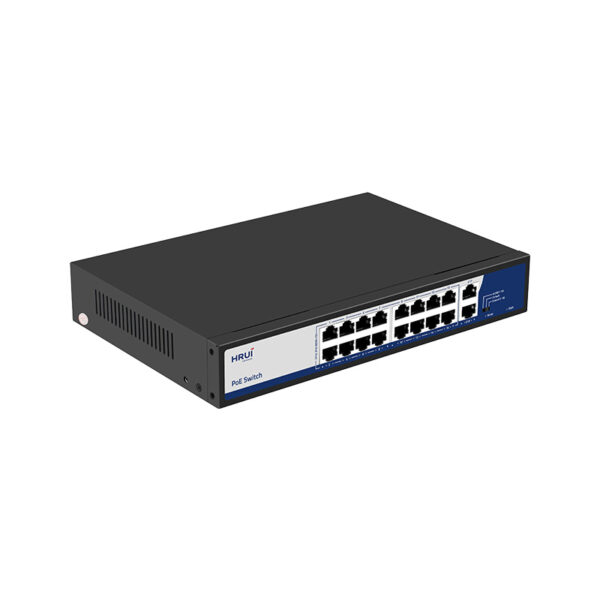

سوئیچ 16 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ اچ ار یو ای HRUI HR902-AF-162G-300
HRUI HR902-AF-162G-300 POE Switch
– سوئیچ 16 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
– سوئیچ PoE
– توان کل 300 وات
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 300KB |  |
برند
HRUI
مدل
HR902-AF-162G-300
Power
AC INPUT （100-240V） 50/60Hz
Ethernet
16x 10/100M PoE Port
2x Gigabit uplink RJ45 Port
bandwidth
7.2 Gbps
Packet forwarding rate
5.35Mpps
Package cache
1.5Mbit
MAC addess
2K
Jumbo frames
9216bytes
Forwarding mode
Store and forward
MTBF
100000 hours
Network protocol
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet)
IEEE802.3x (Flow Control)
PoE Protocol
IEEE802.3af （15.4W）
IEEE802.3at （30W）
Network Medium
10BASE-T: Cat 3、4、5 UTP(≤100 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000Base-TX : Cat5 or more UTP/STP(≤100 meter)
Safety Certification
CE、FCC、RoHS
Working Environment
Working Temperature：-10~50°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~95%，non-condensing
Dimension
Product Dimension：268*181*44mm
Package Dimension：312*262*84mm
N. W：1.29KG(200w)/1.44KG(300w)
G.W：1.77KG(200w)/1.92KG(300w)
Packing Info
Carton MEAS：540*435*332mm
Packing Qty：10 PCS
Packing Weight：18.7KG(200w)/20.2KG(300w)
Power Voltage
Input Voltage ：AC 100-240 V
Power supply：52V 3.8A / 52V 5.76A
Packing list
Switch 1 pc, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair
LEDs
PWR（power supply），Mode（DIP），1-18 Green Light（Link&Data）
PWR
Lighting：Powered
Un-Light：No Power
Mode
Lighting：VLAN（Port Isolation）
Un-Light：Default（General mode）
Flash：Extend（Extend）
1-18 Green Light
Lighting：Connecting
Un-Light：Disconnect
Flashing：Data Transmit
VLAN
Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot
communicate with each other, and can only communicate with the UP-link port.
Default
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive;
Extend
Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
