سوئیچ 8 پورت 10/100/1000Mbps PoE و 2 پورت Uplink گیگ و 2 پورت Uplink SFP گیگ اچ ار یو ای HRUI HR900-AFG-822NS

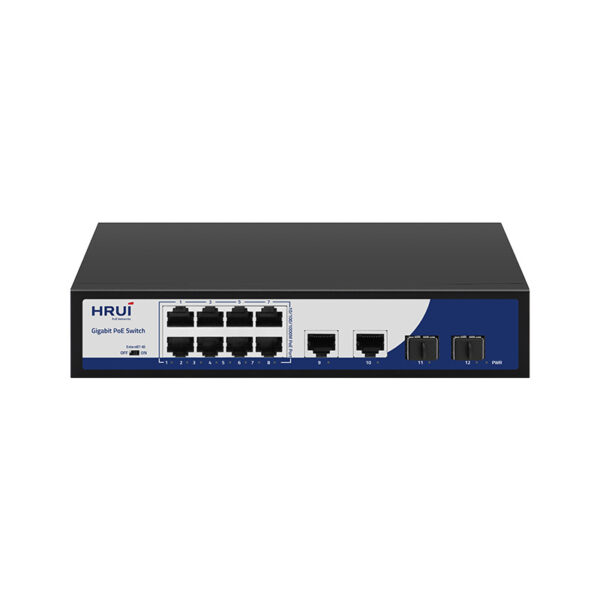

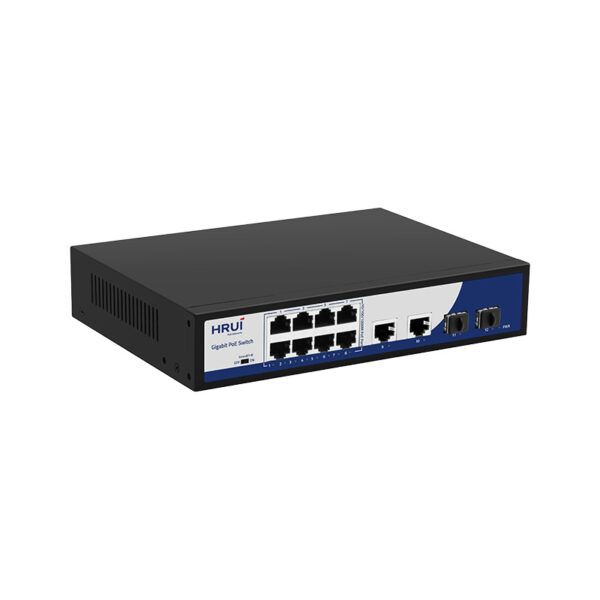

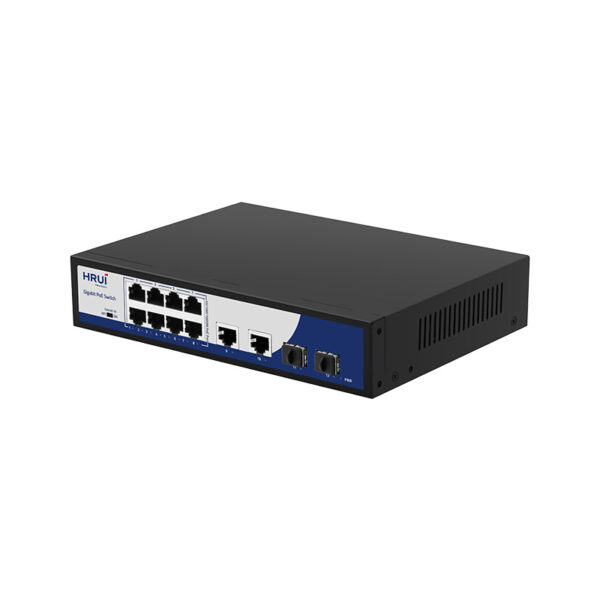

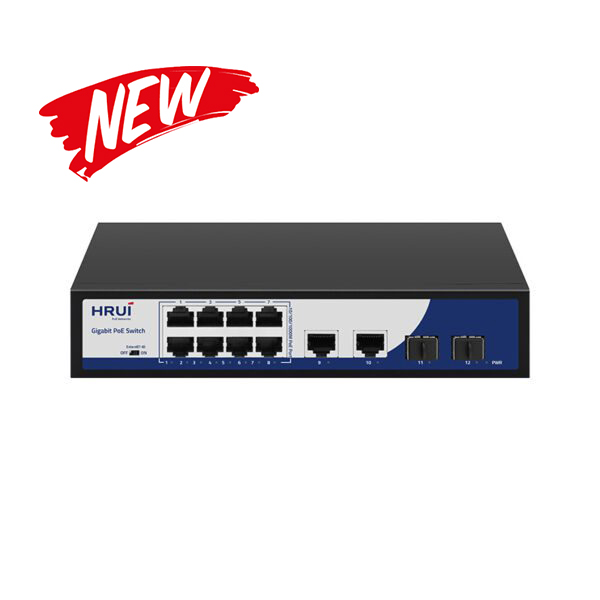

HRUI HR900-AFG-822NS POE Switch
– سوئیچ 8 پورت 10/100/1000Mbps PoE و 2 پورت Uplink گیگ و 2 پورت Uplink SFP
– سوئیچ گیگ PoE
– توان کل 110 وات
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 300KB |  |
برند
HRUI
مدل
HR900-AFG-822NS
Power
AC INPUT (100-240 V)
Ethernet
8x Gigabit PoE Ports
2x Gigabit Ethernet ports 2x Gigabit SFP Ports；
Chipset
EN8850DH
Bandwidth
24Gbps
Packet Forward Rate
17.856Mpps
Package Cache
448Kbit
MAC Address
2K
Jumbo Frame
9216bytes
Forwarding Mode
Storage & forward
MTBF
100000 Hours
Network Protocol
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control)
IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Standard
IEEE802.3af （15.4W） IEEE802.3at （30W）
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD),
IEN61000-4-5 （Surge）
Network medium
10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)
100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Optical Medium
Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Safety Certificate
CCC/CE/FCC/UL/ROHS
Working Environment
Working temperature: -10~50°C Storage temperature: -40~70°C
Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Structure Size
Product Dimensions: 220*161*44.5mm Package Dimensions: 315*215*85mm Product N.W: 0.92kg
Product G.W: 1.22kg
Packing Info
Carton Dimensions: 445*445*335mm Packing Quantity: 10 PCS
Packing Weight: 13.2KG
Power Voltage
Input voltage: AC 100-240 V 50-60Hz Supply power：52V /2.3A 120W
Packaging List
Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc
Indicator
PWR (Power)，1-12 Green Light (Link&Data)
PWR
On: Powered on Off: Powered off
1-10Green Light (Link&Data)
On: Link normal Off: Link blocked
Flashing: Data transmitting
DIP Switch
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enable POE watchdog)
