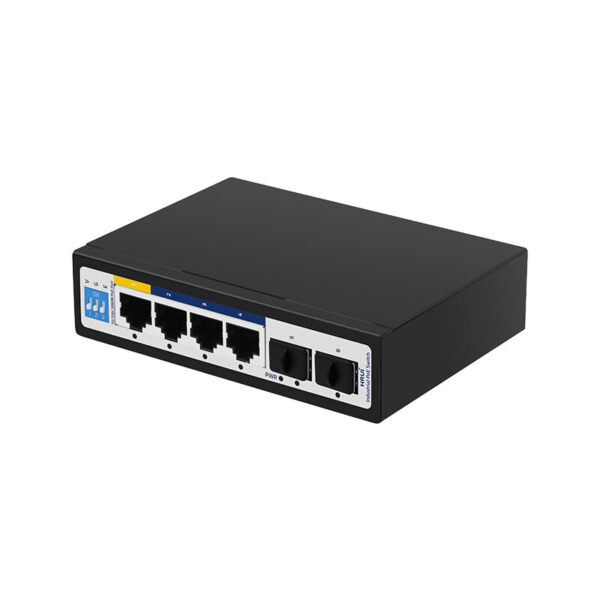

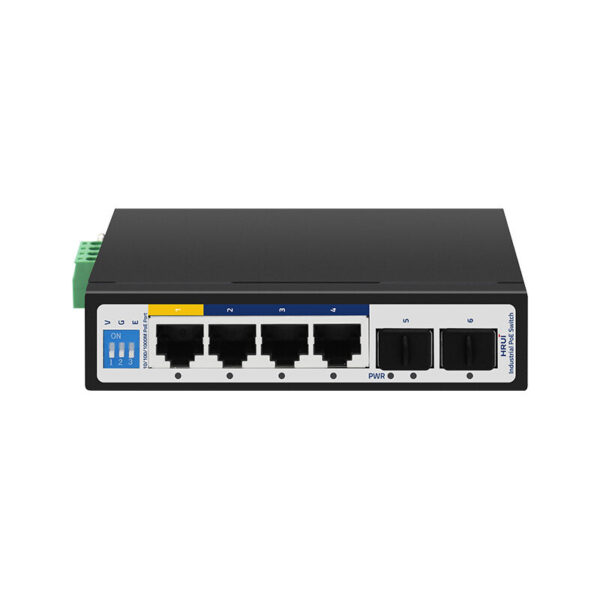

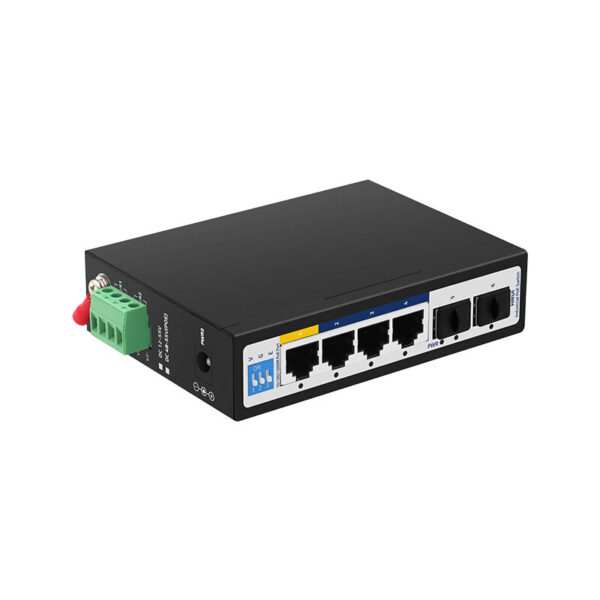

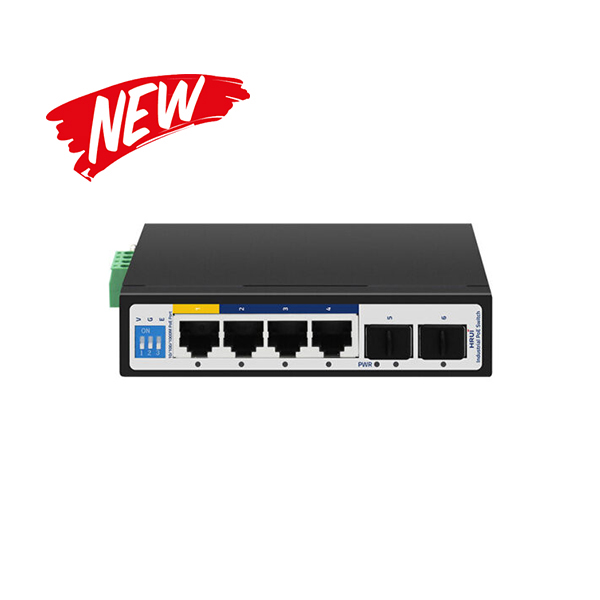

سوئیچ PoE صنعتی دارای ۴ پورت و ۲ پورت SFP گیگ ۱۲Gbps دارای پهنای باند اچ ار یو ای HRUI HR500-AXG-42S
HRUI HR500-AXG-42S
– سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink SFP
– سوئیچ PoE صنعتی
– توان کل 65 وات
– پشتیبانی پورت اول از BT 90W
– 30 ماه وارانتی بی قید و شرط
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 1000KB |  |
برند
HRUI
مدل
HRUI HR500-AXG-42S
Power
DC 48～55V
Ethernet
4xGigabit PoE Ports (Port 1 supports 90W)
2xGigabit SFP Port
Bandwidth
12Gbps
Pack forwarding rate
8.928Mpps
MAC address
8K
Jumbo frame
9.6Kbytes
Transfer mode
Storage & forward
MTBF
100000 Hours
Network protocol
IEEE802.3
IEEE802.3i
IEEE802.3u
IEEE802.3ab
IEEE802.3z
PoE standard
PoE
standard: IEEE802.3af /IEEE802.3at
Single port max: 15.4 W (IEEE 802.3af)
Single port max: 30 W (IEEE 802.3at)
PoE
compatibility: IEEE 802.3af/at self-adaptive
PoE port output voltage: DC 48-55V
PoE
power supply wire core:1/2+ ; 3/6-
Indsutry standard
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4
(EFT) EN61000-4-5 (Surge)
Network Medium
10BASE-T: Cat3, 4, 5 UTP (≤100 m)
100BASE-TX:
Cat5 or above UTP (≤100 m)
1000BASE-TX: Cat5 or above UTP (≤100 m)
Optical medium
Multimode fiber:
850nm, 1310nm transmission distance: 550m/2KmSingle-mode
fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
Safety certificate
CE, FCC, RoHS
Working environment
Working
temperature: -40～75℃
Storage temperature: -40～85℃
Humidity: 5%~95 %
(non-condensing)
Structure size
Product dimension: 120*87*30 mm
Package dimension: 175*130*55mm
Product
N.W: 0.441 KG
Product G.W: 0.530 KG (without power)
Packaging info
Carton MEAS: 540*290*375mm
Packing Qty: 40 PCS
Packing Weight: 22.2 KG
Power voltage
Voltage input:
DC48～55VPower
cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1
Packaging List
1. Industrial Switch: 1 PC
2. User Manual: 1 PC
3. Certification: 1 PC
4. Pull-arm: 1 PC
LED Indicator
PWR, 1-6 green light
PWR
On: Powered on
Off: Powered off
1-6 green light
On: Link normal
Off: Link off
Flashing:
Link data transmitting
DIP function
V,
G, E (Up open, down close)
V
V:
VLAN mode, ports 1 to 4 are isolated and can communicate with ports 5 and 6
G
G:
Normal mode
E
E:
Extend mode, ports 1-4 are reduced to 10M and can be extended to 250m
