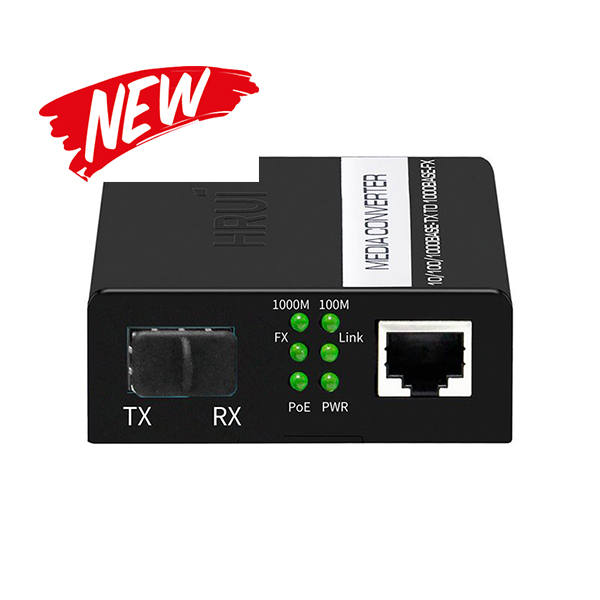

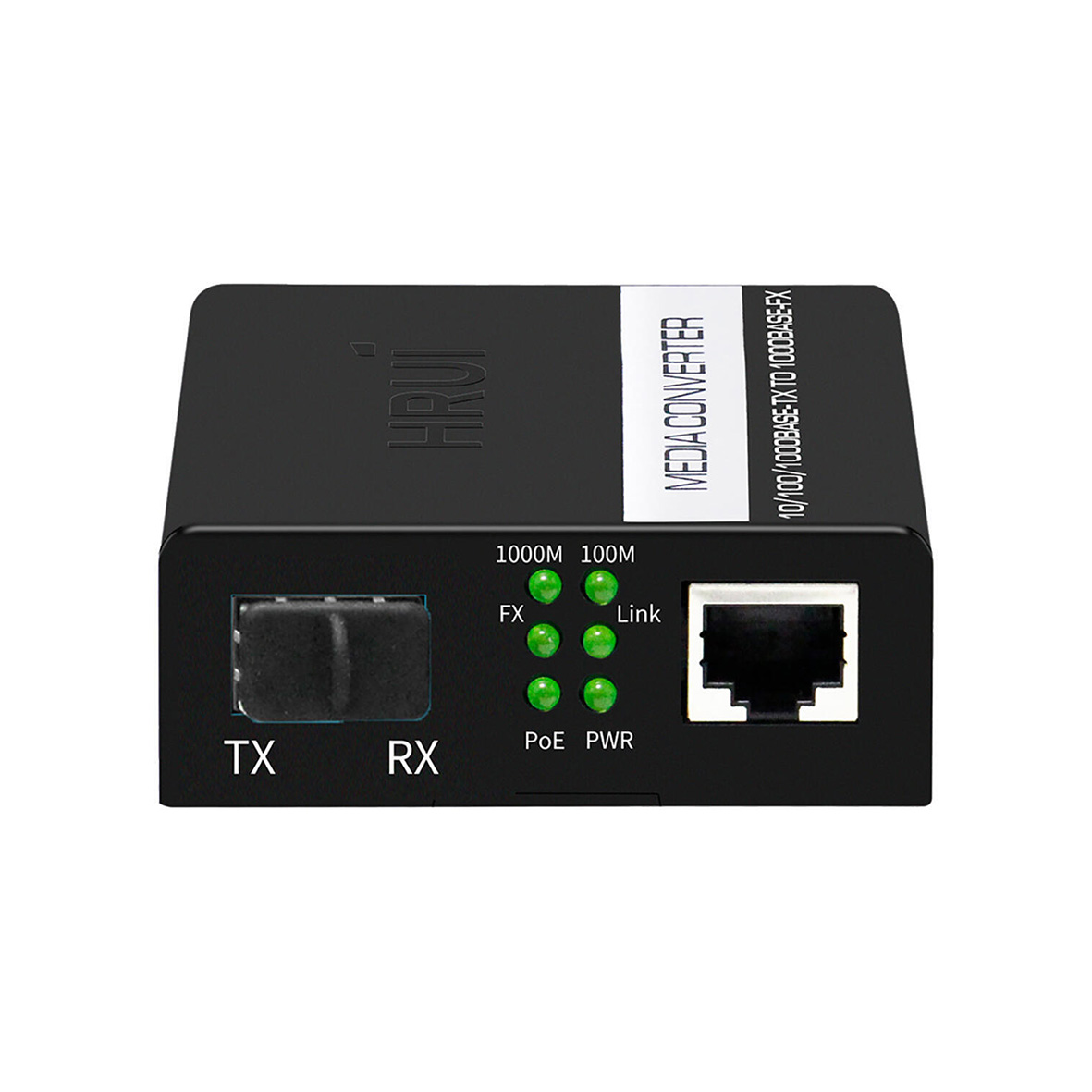

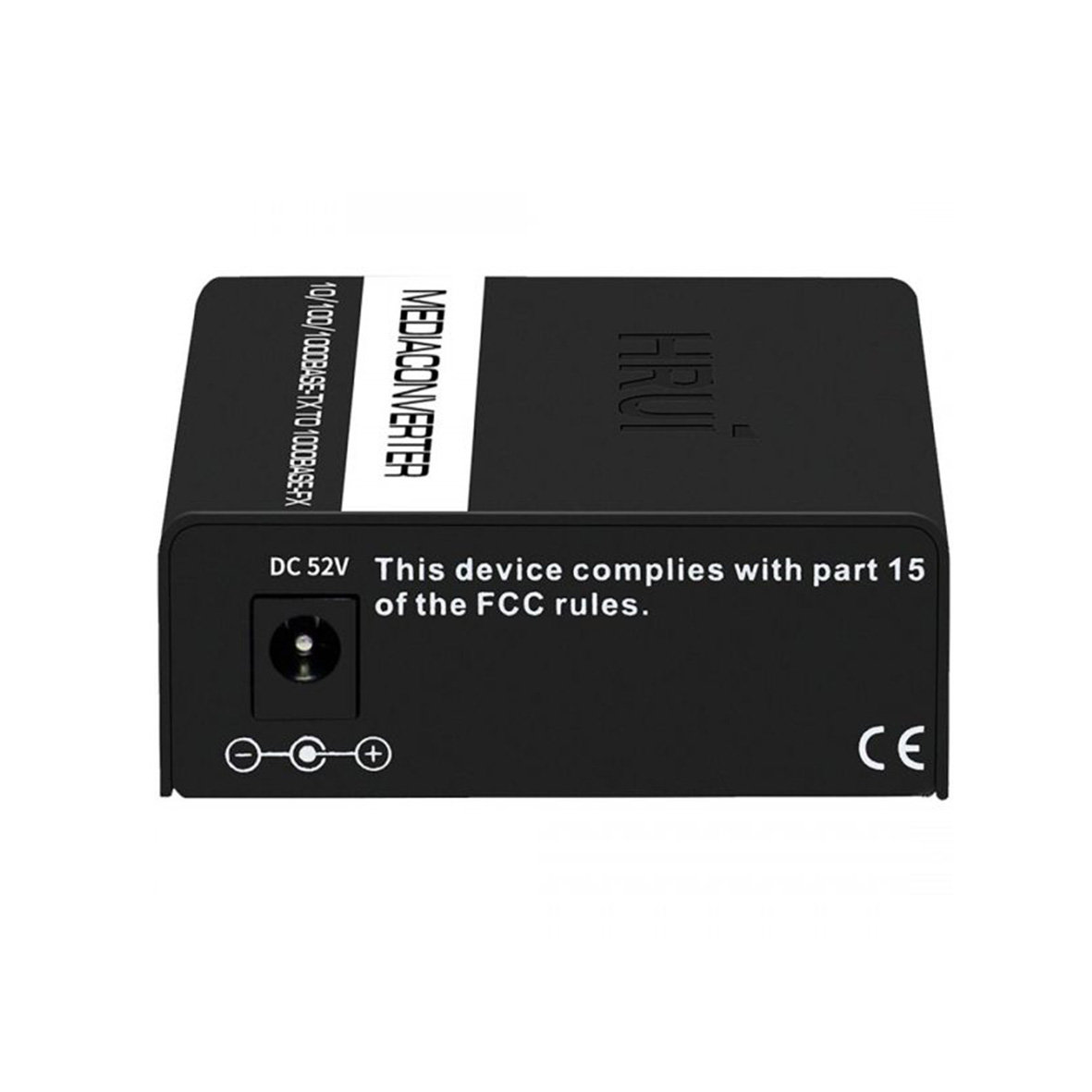

مبدل اترنت به فیبر نوری اچ ار یو ای HRUI HR100-ATGE-SFP
HRUI HR100-ATGE-SFP Ethernet Media Convert
– مبدل اترنت به فیبر نوری
– DC5V
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 300KB |  |
برند
HRUI
مدل
HR100-ATGE-SFP
Power
DC 5V
Ethernet
1x 1*10/100/1000M PoE port
1x 1000M SFP port
Switching Capacity
4Gbps
Throughput
2.976Mpps
Packet Buffer
2K
MAC Address
2K
Jumbo Frame
9216bytes
Transfer Mode
Store and forward
MTBF
100000 hour
Network protocol
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX/FX)
IEEE802.3ab (1000Base-TX/FX)
IEEE802.3x(Flow control)
Optical Characteristics
multi mode: 850/1310nm(0-2KM)
Single mode: 1310/1550/1490nm(0-120KM)
Industry Standard
EMI: FCC Part 15 CISPR(EN55032) class A
EMS: EN61000-4-2(ESD), EN61000-4-4(EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
Optical Media
Multimode fiber: 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Safety Certificate
CE, FCC, RoHS
Working Environment
Working Temperature: -20~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
Working Height: Maximum 10, 000 feet
Storage heigh: Maximum 10, 000 feet
Structure Size
Product Size: 94*70*26mm
Package Size: 203*160*55mm
Product Net-Weight: 0.3kg
Product Gross-Weight: 0.5kg
Packing Info
MEAS: 600*495*435mm
Packing Qty: 60 Pcs
Packing weight: 31KG
Power Voltage
Adapter input voltage: AC 100-240V
Media Converter input voltage: DC 5V0.92A
Package List
Media Converter 1 pcs, Power Adapter 1 pcs, User manual 1 pcs, Certification 1 pcs
LED Indicators
PWR(Power indicator)
FDX(Network mode)
1000M(1000M Network Link)
100M(100M Network data)
PoE(PoE indicator)
Link(Network Link&Act)
