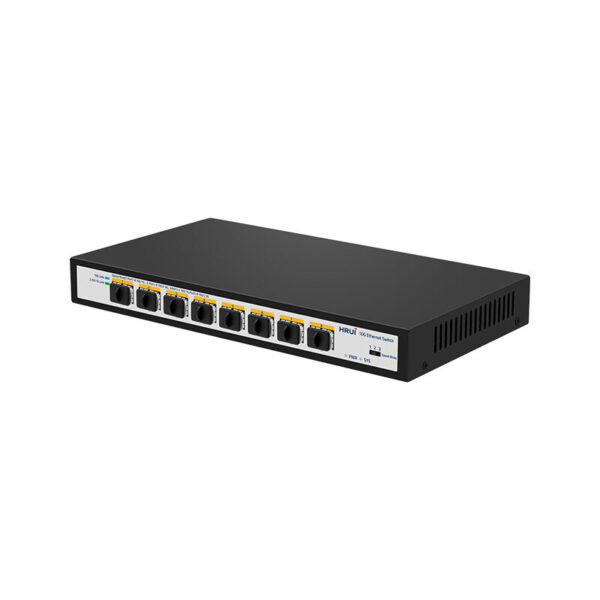

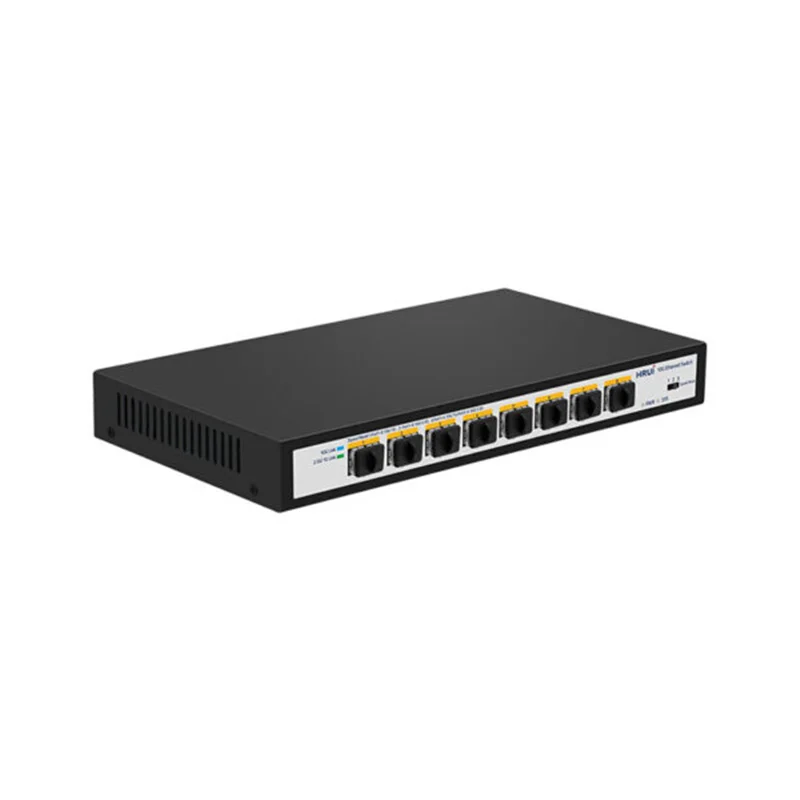

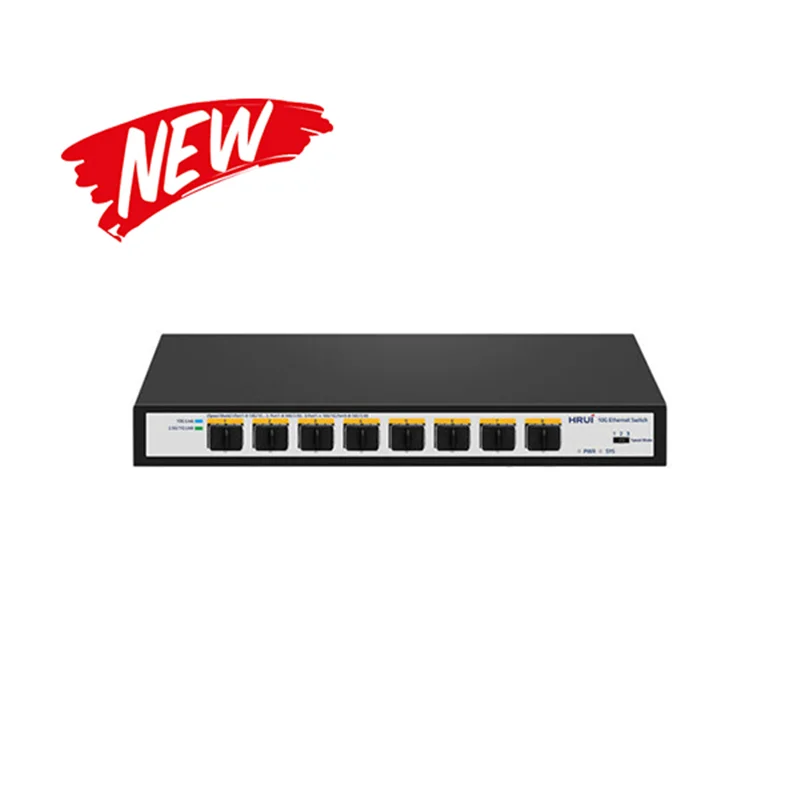

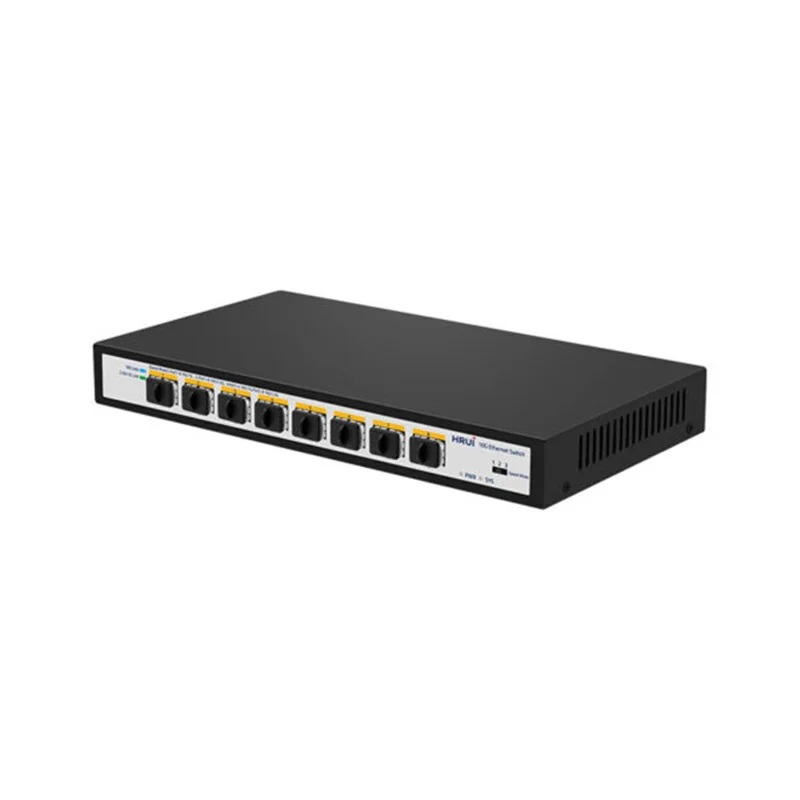

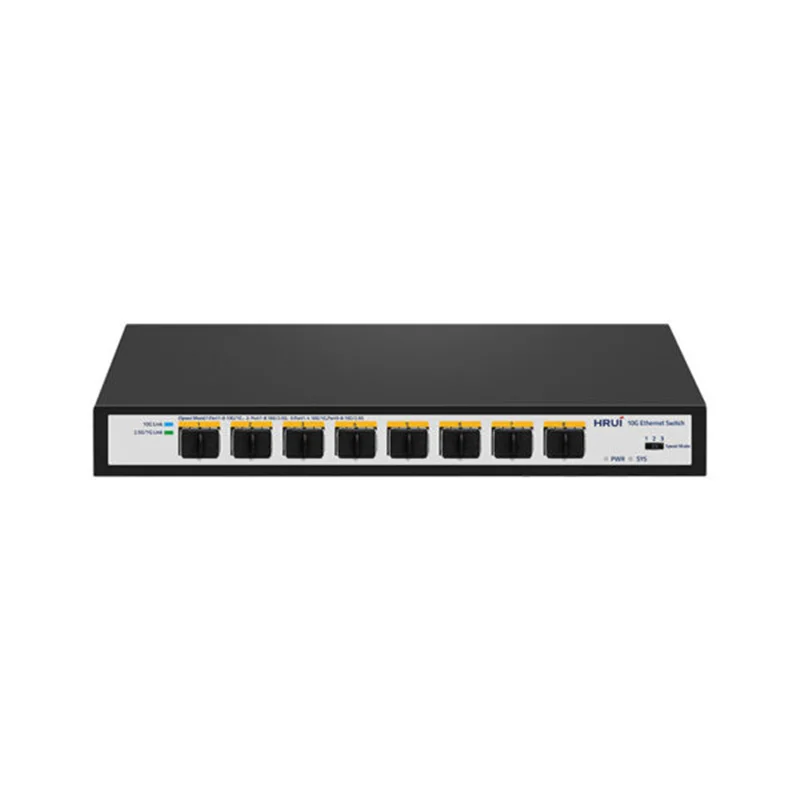

سوئیچ شبکه فیبرنوری اترنت صنعتی دارای ۸ پورت SFP 10G دارای پهنای باند ۱۶۰Gbps اچ ار یو ای HRUI HR-SWTG1C8F
HRUI HR-SWTG1C8F
– سوئیچ 8 پورت SFP+ 10G
– سوئیچ اترنت صنعتی
– 30 ماه وارانتی بی قید و شرط
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 345KB |  |
برند
HRUI
مدل
HRUI HR-SWTG1C8F
Power input
DC 12V
Ethernet
8x10G SFP+ ports
Chip Scheme
RTL9303
Bandwidth
160Gbps
Packet Forwarding Rate
119.04Mpps
RAM
128MByte
Flash Memory
16MByte
Memory Cache
12Mbit
Mac Address Table
16K
Jumbo Frame
12Kbytes
Network Protocol
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3z (Gigabit Ethernet fiber standard)
IEEE 802.3ae (10G Ethernet)
IEEE802.3x (Flow control)
Industry Standard
EMS: EN61000-4-2 (ESD),
EN61000-4-5 (Surge)
Optical Media
Multimode fiber: 50/125, 62.5/125, 100/140um
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um
Safety certification
CE, FCC, RoHS
Working Environment
Working temperature: – 10~50 ℃
Storage temperature: – 40~70 ℃
Working humidity: 10%~90%, non-condensing
Storage humidity: 5%~95%, non-condensing
PWR (Power light)
On: Powered on
Off: Powered off
SYS
Flashing: System startup in progress
On: System startup completed
SFP Port Light
Blue on: 10G link
Green on: 1000M/2500M link
Flashing: Data transmitting
Off: Link not working
Dial Switch
Left Side: 1 to 8 Ports have speeds of 10G/1G.
Middle: 1 to 8 Ports have speeds of 10G/2.5G.
Right Side: 1 to 4 Ports have speeds of 10G/1G, 5 to 8 Ports have speeds of 10G/2.5G.
Structure size
Productsize:220*126*28mm
Packagesize:259*228*60mm
Netweight:0.62KG
Grossweight:0.86KG
Packing information
Cartonsize:535*320*480mm
Packingquantity:20Pcs
Packingweight:18.2KG
Supply voltage
Power Adapter: 12V2A
Power
Maximum 18W
Packing list
Switch 1PCS
manual 1PCS
certificate of conformity 1PCS
power cord 1PCS
