عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 353KB |  |
– سوئیچ 5 پورت گیگ اترنت
– سوئیچ اترنت
– توان کل 5 وات
– 30 ماه وارانتی بی قید و شرط
برند
HRUI
مدل

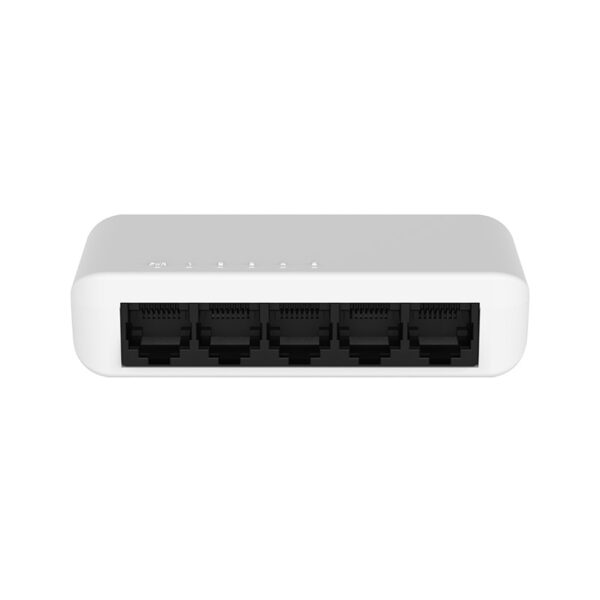

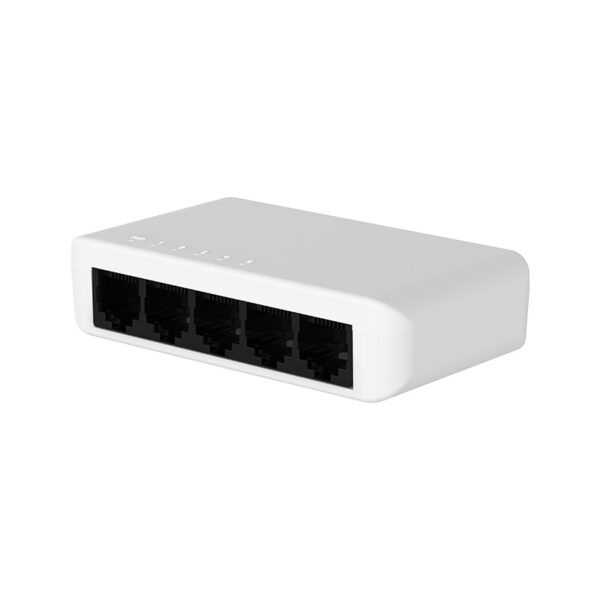

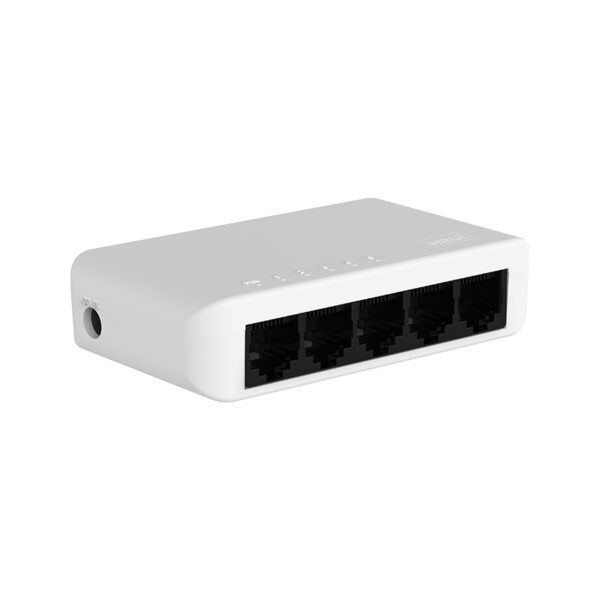

+HRUI HR-SWG0050
Power
DC 5V
Ethernet
5xGigabit RJ45 Ports
Main Chip
EN8850DN
Switching Capacity
10Gbps
Throughput
7.44Mpps
Package cache
3Mbit
MAC Address
2K
Jumbo Frame
15Kbytes
VLAN
4K
Transfer Mode
Store and forward
MTBF
100000 Hours
Network Protocol
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Network Medium
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
safety Cercificate
CE、FCC、RoHS
Working Environment
Working Temperature：-10~50°C Storage Temperature：-20~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~95%，non-condensin
Structure Size
Product Size：92*51*21.5mm Packing Size：93*82*51mm Product Weight：0.062Kg Packing Weight：0.132Kg
Packing Info
Outer box size: 435*280*395mm Packing quantity: 100PCS Packing weight: 14.2KG
Voltage
Power interface: DC2.1
Switch input voltage: DC 5V1A
Total Power
＜5W
Packing List
Switch：1 PCS
User manual ：1PCS Warranty card：1 PCS Power Adapter：1 PCS
LED Indicators
PWR（Power indicator）、Link（Network Link）
PWR
On: power on Off: no power
Link
On: 10/100/1000M link connection is normal Blinking: Data transmission is normal
Off: link failure
گارانتی
30 ماهه راندمان
